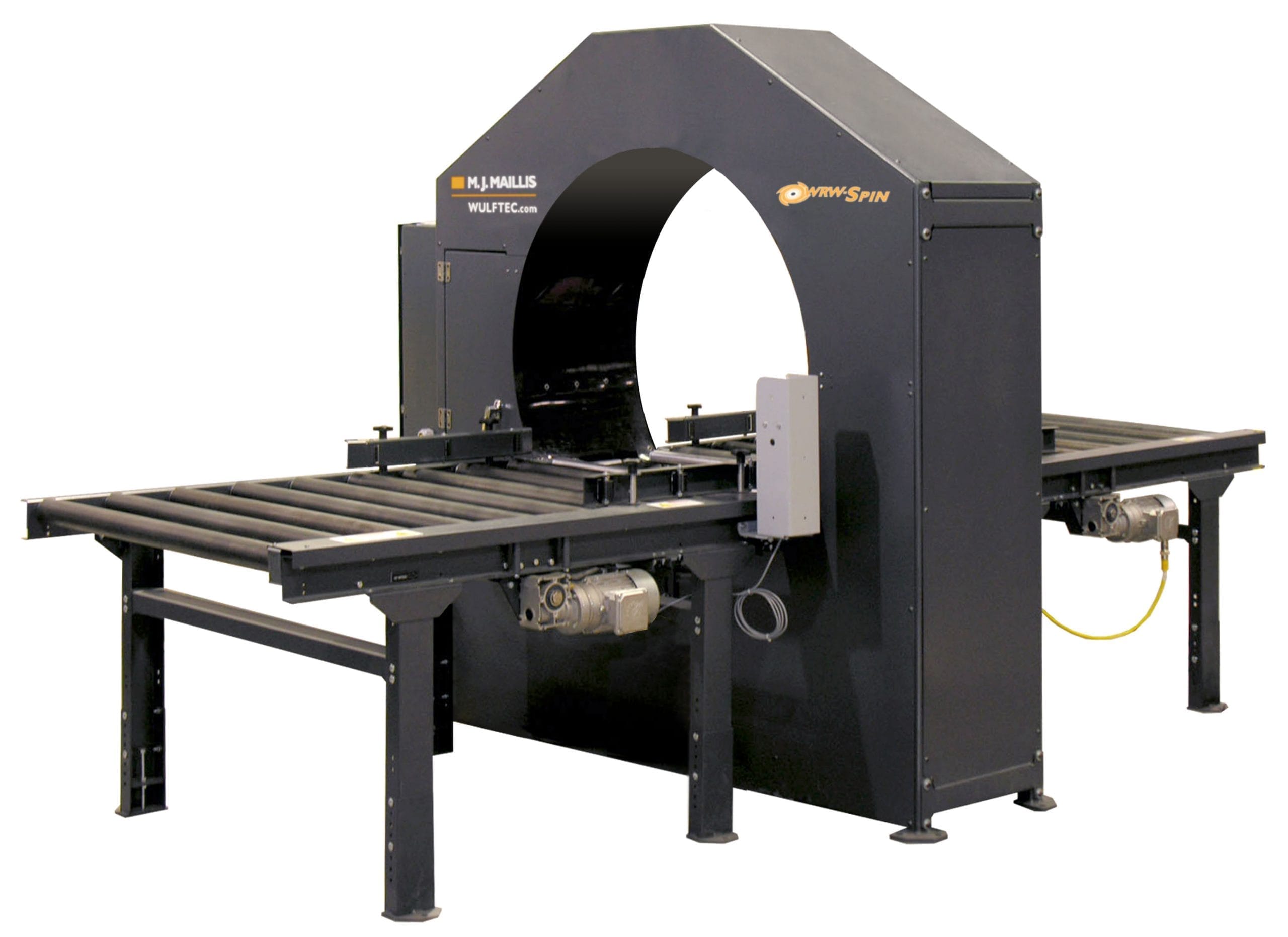

Description
Key Specs:
Production Rate
- 200 loads per hour
Machine Dimensions
- 18″, 24″, 36″, 48″ or 60″ diameter ring
- Other ring sizes available
- Machine dimensions depending on ring size
Load Weight
- Maximum load weight limited to conveyor capacity
Electrical Requirements
- 230 V /
- 3 ph /
- 60 Hz
- 15 A
Pneumatic Requirements
- 3 cfm @
- 80 psi
Controls
- Allen Bradley Micrologix 1200 PLC
- Automatic cut & clamp system
- 24V control system
- Top hold down activation photoeyes (if applicable)
- Start / stop push button
- Auto/Manual/Continuous mode
- Current overload protection
- NEMA 4/12 control cabinet with quick disconnect
- Power on/off switch and indicator pilot light
- Large emergency stop (push / pull type)
- End wraps selectors (1-2-3)
- Push button to activate film cut & clamp
- Foot pedal ring activation or load release
- UL approved components and UL508A control panel
Automatic Operation
- Communication package with entrance & exit conveyor, cut & clamp sequence occurs upon clearance of the exit photoeye OR
- Load release by foot pedal and powered conveyor, cut & clamp sequence occurs upon clearance of the exit photoeye
- When load is fed by conveyors controlled by Wulftec, machine comes with a push button for banding mode
Manual Push Through Operation
- Foot Pedal activates ring rotation
- Entrance and exit photoeyes activate top hold down (if applicable)
- Push button must be depressed for cut & clamp sequence**
- Continuous cycle mode available
Film Delivery System
- 5″ to 10″ film carriage. (Film core diameter 3″)
- Manual film tension adjustment directly on carriage
- Quick and easy film roll change
- Can be used with pre-stretched film for more cost savings
Film Tail Treatment
- Automatic film cutting & clamping (can also be activated manually)
Structure
- All structural steel design
- Fully guarded frame
- Electric interlocked access door
Drive System
- RPM based on ring size (80 RPM on a 36” ring)
- AC motor with variable frequency drive
- Aluminum ring driven by a flat belt allowing higher speeds
- Maintenance free vertical polyurethane guiding wheels with sealed bearings
- Electronic soft start/stop
- Positive ring alignment controlled by proximity sensor
- Electric brake system
Safety Features
- 1 E-Stop mushroom type push button on control panel (Additional E-Stops are available upon request*)
- Wrapping zone enclosed with an electronically interlocked access door
Conveyor
- A large variety of gravity and powered conveyors are available. (Chains, belts, v-belts, roller, etc.)
Technical Information
- The machine is provided with a manual including electro/mechanical schematics and drawings, troubleshooting guide and installation instructions
