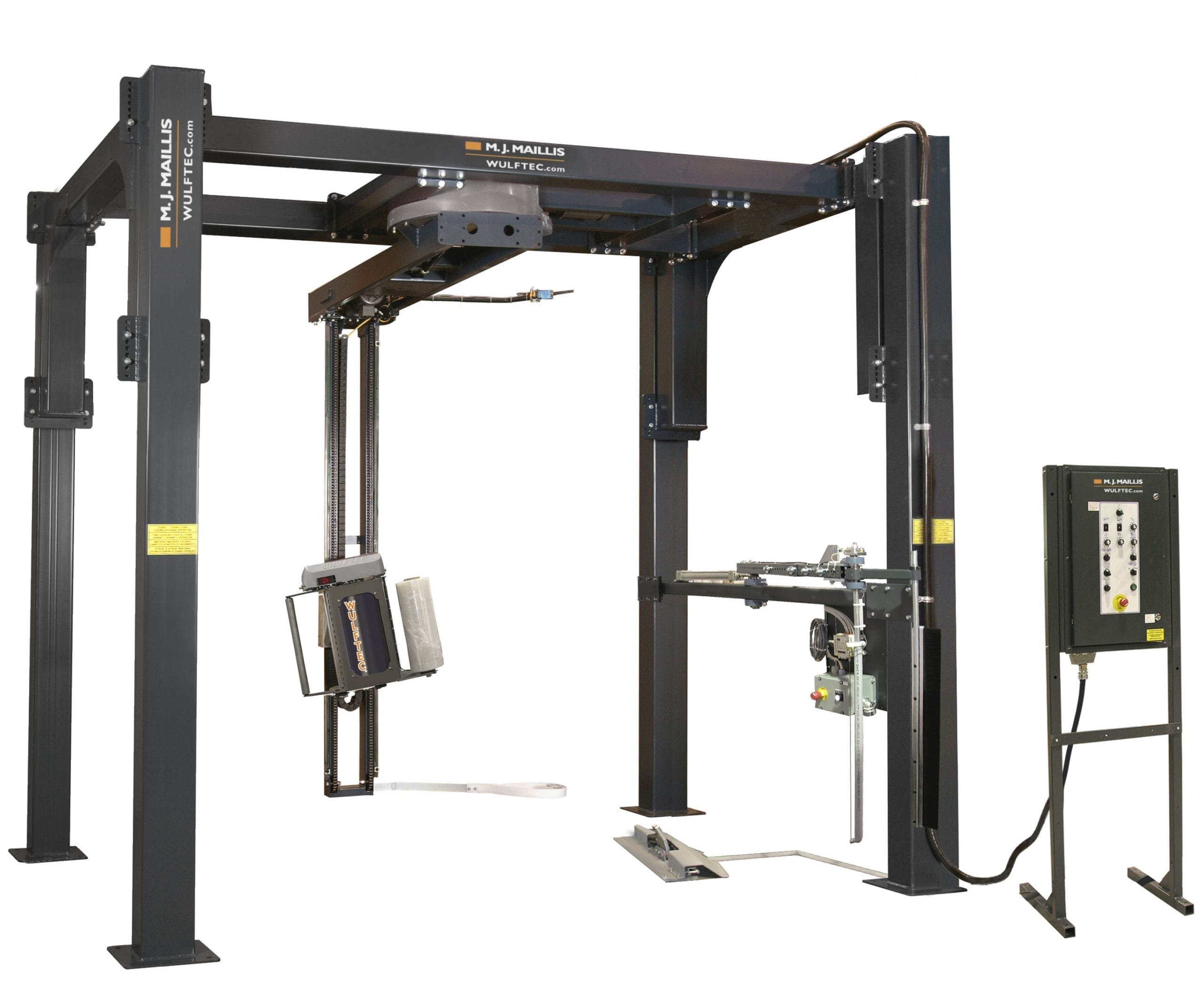

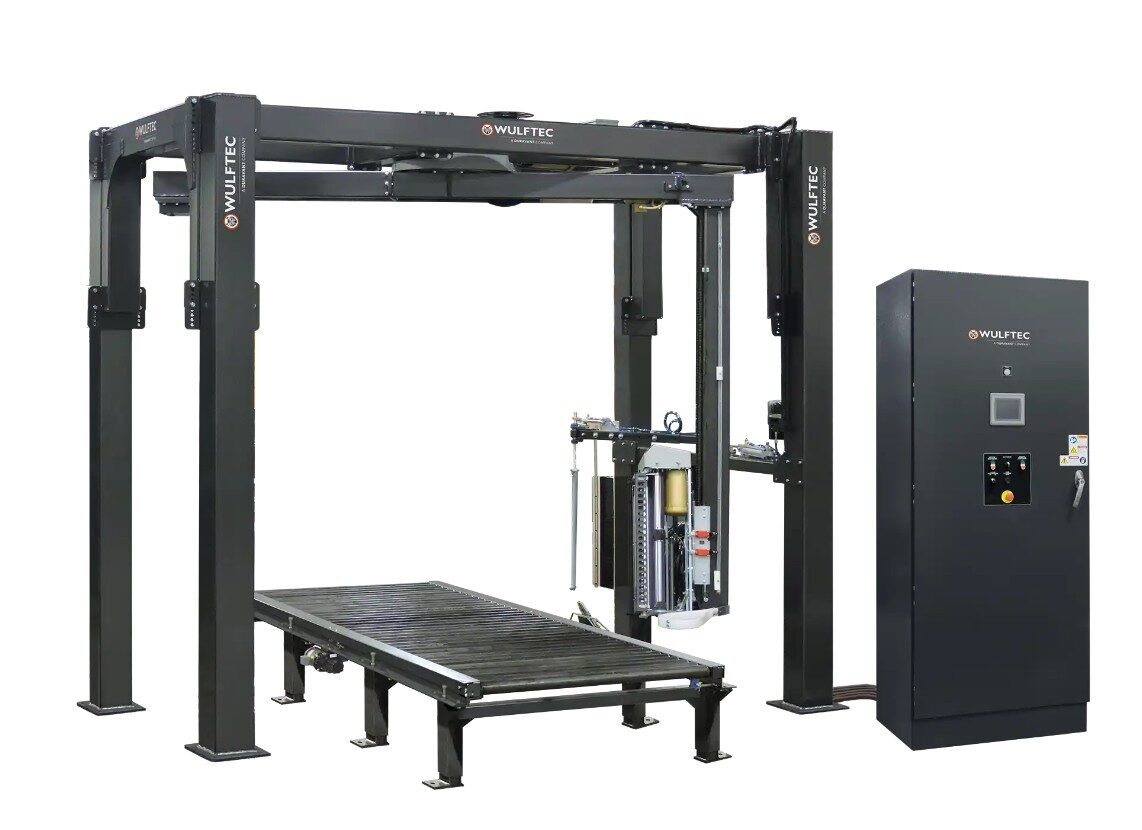

Key Specs: Production Rate 50 loads per hour Machine Dimensions 141.5 ” L x 130 ” W x 117.5 ” H Maximum Load Size 56 ” L x 56 ” W x 80 ” H Maximum Load Weight Unlimited Approximate Shipping Weight 2800 lbs Electrical Requirements 120 V / 1 ph / 60 Hz 15 A Air Requirements 3 cfm @ 80 psi Controls Allen Bradley MicroLogix 1200 PLC 24V control system Current overload protection NEMA 4/12 control cabinet (can be located up to 10′ from machine frame) Autoheight sensing photoeye Power on/off switch and status light Start/stop push button Large emergency stop (push / pull type) Manual carriage up/down function Variable rotary arm speed (12RPM) Separate up and down carriage speeds Separate top and bottom wrap selectors Reinforced wrap/manual rotation control Positive arm alignment controlled by proximity sensor Top cover pause switch (Splash proof program) Spiral up or spiral up/down switch Film force to load control Emergency stop sensor for arm path obstruction Mode switch (Manual or Automatic) Pull cord with 40′ of cable (to be installed by customer) Separate station on front of tower with clamp jog and an additional e-stop Lack of film alarm Structure Heavy duty structural steel construction Free standing integrated leg design Four (4) 6″ x 6″ floor mounting legs Easy access to all components Anchoring Requirements Wulftec recommends using heavy-duty expansion shields of 3/4″ diameter thread size with a minimum anchor depth of 4″ in concrete Film Delivery System 20″ NO-THREAD® Powered Pre-Stretch Carriage 1 HP AC motor with Allen Bradley variable frequency drive Lifetime warranty on pre-stretch rollers blue compound Film force release for easy pull at start and end of cycle 50-400% pre-stretch ratio (preset to customer spec, Std 200%) Electronic film tension control with analog sensor Lexan roller cover for operator safety Angled carriage to wrap approximately 2″ from floor level Proximity sensor on carriage gate to ensure gate is properly closed Film Carriage Drive 1 HP AC motor with Allen Bradley variable frequency drive Two #50 carriage lifting chains Dual 1/2″ CRS ways with UHMW-PE carriage glides Dual structural steel supporting boom Power track for efficient guiding of wires Film Tail Treatment Automated Cut/Clamp & Wipe system Pulse controlled cutter Film alignment arm & Brush on film tail treatment Rotary Arm Drive Heavy duty 25″ ring gear with pinion gear drive 1 HP AC motor with Allen Bradley variable frequency drive 0-12 RPM variable speed Electronic soft start/stop Positive arm alignment controlled by proximity sensor Protection guard over the ring gear Technical Information The machine is provided with a manual including electro/mechanical schematics and drawings, troubleshooting guide & Installation instructions
