Description
Key Specs:
Production Rate
- 30 loads per hour
Machine Dimensions
- 132 ” L x
- 59.5 ” W x
- 96.25 ” H
Minimum Load Size
- 12 ” L x
- 24 ” W x
- 24 ” H
Load Weight
- 4000 lbs
Approximate Shipping Weight
- 2600 lbs
Electrical Requirements
- 230 V /
- 3 ph /
- 60 Hz
- 15 A
Pneumatic Requirements
- Not required, except with optional kicker
Controls
- Allen Bradley MicroLogix 1200 PLC
- 24V control system
- Current overload protection
- NEMA 4/12 control cabinet
- Wrap selectors (1 to 99)
- Power On/Off switch and status light
- Start/Stop push button
- Large emergency stop (push / pull type)
- Manual carriage up/down function
- Variable table speed (16 RPM) with automatic home position with automatic home position
- Variable cradle roller speed
- Manual table job
- Cradle rotation jog
- Film tension adjustment
- Lack of film alarm
Structure
- 14 gauge formed steel tower
- Forklift Portable base design from both ends
- Heavy duty structural steel construction
Film Delivery System
- 20″ NO-THREAD® Powered Pre-Stretch Carriage
- 1 HP AC motor with Allen Bradley variable frequency drive
- Lifetime warranty on pre-stretch rollers blue compound
- Film force release for easy pull at start and end of cycle
- 50-400% pre-stretch ratio (preset to customer spec, Std 200%)
- Electronic film tension control with analog sensor
- Film roping bar
- Lexan roller cover for operator safety
- Proximity sensor on carriage gate to ensure gate is properly closed
Film Carriage Drive
- 1 HP AC motor with Allen Bradley variable frequency drive
- Two #50 carriage lifting chains enclosed in tower for safety
- Bearing supported maintenance free guide wheels

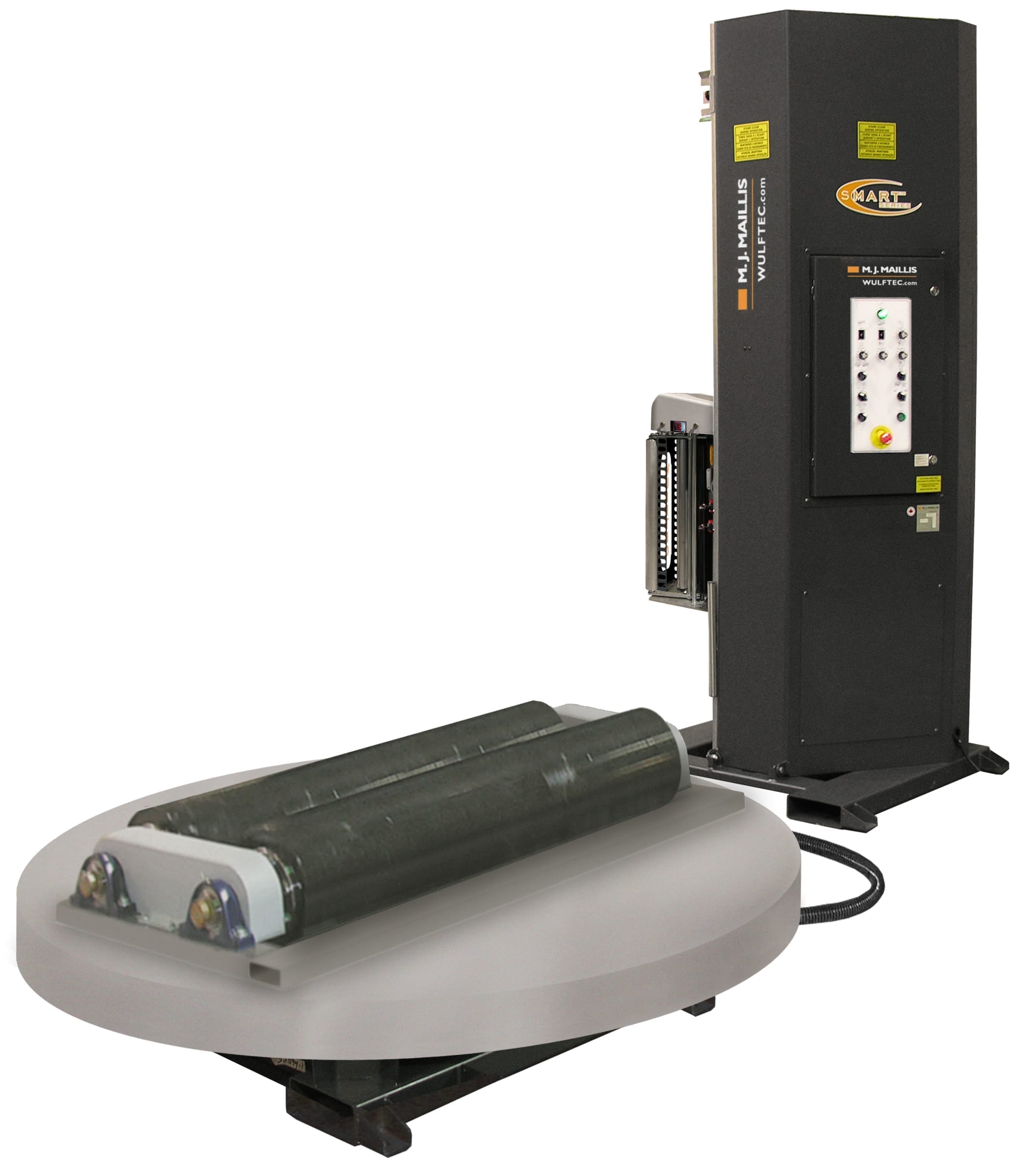

Turntable
- 77″ dia. x 1/2″ thick round table
- 60″ long powered cradle rollers
Turntable Drive
- 1 HP AC motor with Allen Bradley variable frequency drive
- 0-16 RPM variable speed
- 25″ Heavy duty Ring gear bearing drive
- Electronic soft start/stop
- Positive turntable alignment controlled by proximity sensor
Technical Information
- The machine is provided with a manual including electro/mechanical schematics and drawings, troubleshooting guide & Installation instructions
