Description

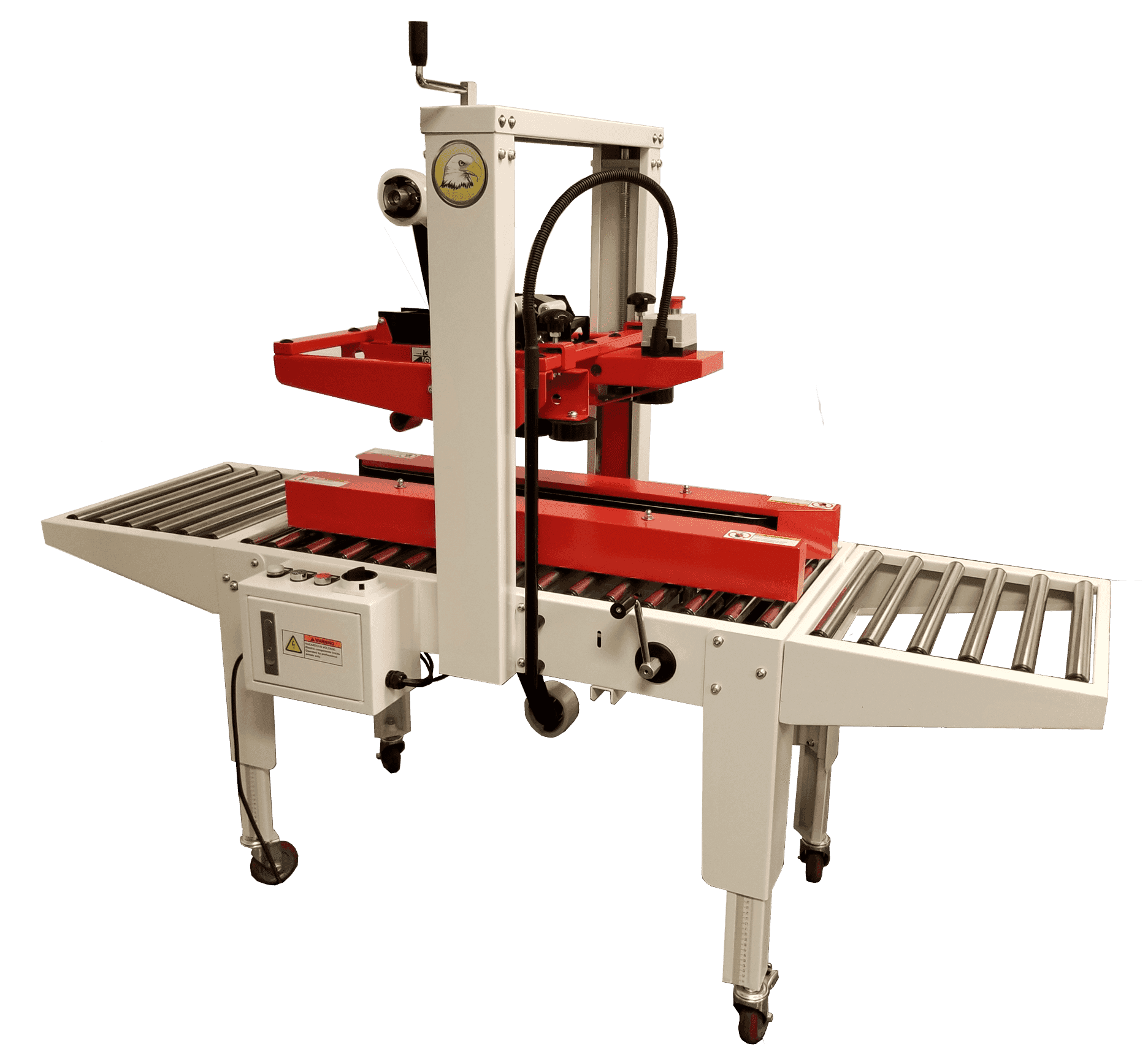

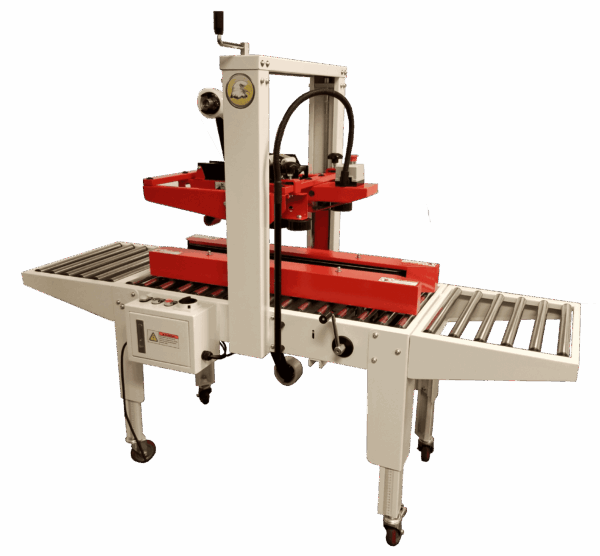

The Eagle T100SM is the same as Eagle T100, however it is designed and best suited for smaller cartons. This specialty carton sealer can tape boxes that measure only 3″ tall, and with side belt drives it can process narrow boxes with a minimum width of 3.75″. The side belt drives ensure proper carton sealing even with cartons that are short in height, but have an extended length. The Eagle T100SM is best suited for medium volume production. Tape head accepts 2″ tape.
Features:
- Side drive belts
- Locking casters
- Top squeezers
- Dual mast
- Top and bottom tape heads
- Extension roller tables
Available Options:
- High-speed motors
- Roller conveyer
- Extended working height
- Indexer
- Hold-down attachment
- Low tape sensor
- Broken tape sensor
- Flexible Conveyor
Additional information
| Power | 110VAC/60Hz |
|---|---|
| Carton Size | Length: 6.00” to ∞ Width: 3.75” to 11.75” Height: 3.00” to 18.50” |
| Tape Width | 2″ |
| Tape Length | 1,000 yd to 2,000 yd |
| Max. Load | 80 lbs |
| Machine Dimensions | 43.25” x 30.5” x 51.75″ |
| Machine Weight | 507 lbs |
| Working Height | 17.75″ x 22.25″ |
| Sealing Speed | Up to 30 cartons per minute |
