Description

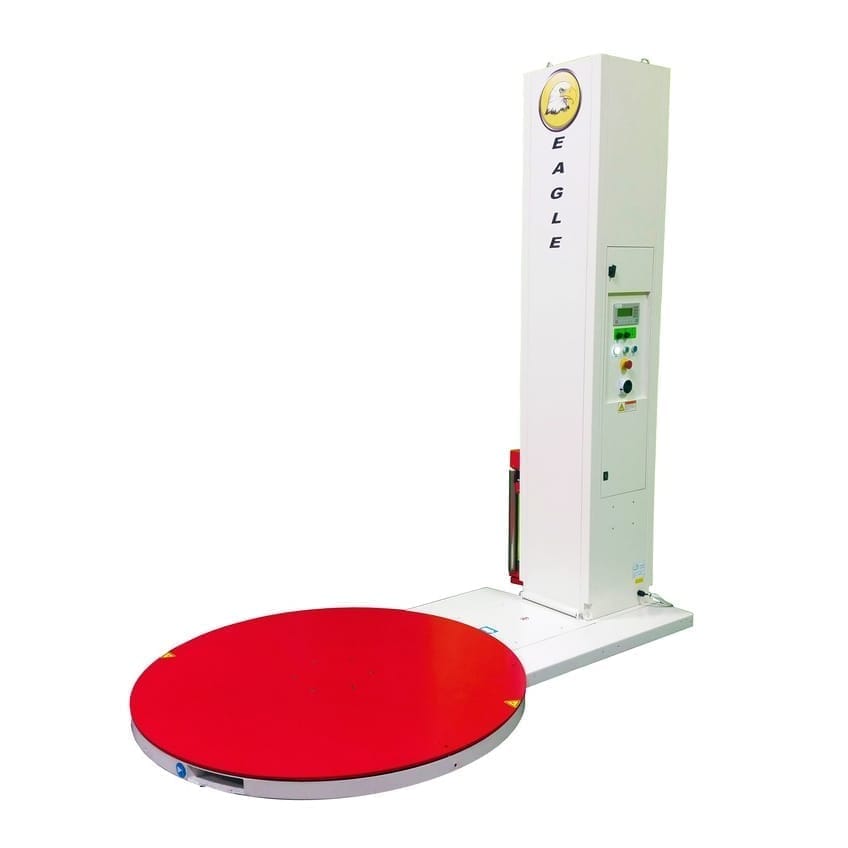

The Eagle 2000 series stretch wrappers feature a powered film carriage unit to maximize film efficiency. First, a photoelectric sensor automatically recognizes the load height. Then the carriage travel will automatically adjust to create an effective wrap cycle. Additionally, the turntable offers a soft start/soft stop feature for gentle handling. Thereupon completion of a job cycle, the turntable resets itself automatically. Therefore this allows for proper orientation of the load for pallet jack or forklift insertion. Even more available features offer increased production and a cost per load savings. Nevertheless, owning an Eagle 2000A series stretch wrapper just makes work life more efficient.
Features
- Mechanical Pre-stretch
- Semi-Automatic or Manual Operation
- PLC (Programmable Logic Controller)
- LC Display with Integrated Controls
- ALHS (Automatic Load-Height Sensor)
- Automatic Turntable Reset to Home Position
- Soft Start/Stop Turntable
- Handles Pallet Load Profiles A, B, and C
Available Options
- Standard or heavy-duty Turntable Loading Ramp
- Porch Extensions
- Infrared or Digital Load-Height Sensor
- Roping Pallet System
- Scale Integration
- Auto Film Cut-Off
Additional information
| Power | 110VAC, 60Hz |
|---|---|
| Turntable Speed | 12rpm |
| Turntable Diameter | 59″ |
| Turntable Height | 3-1/8″ |
| Turntable Diagonal | 80″ |
| Mast Height | 95″ |
| Max. Load Weight | 5,000lbs |
| Min. Load Height | 22″ |
| Max. Load Height | 87″ |
| Stretch Film | 20″, 30″ film carriage available upon request |
| Dimensions | 96.5″ x 59″ x 99″ |
| Weight | 1,295lbs |
